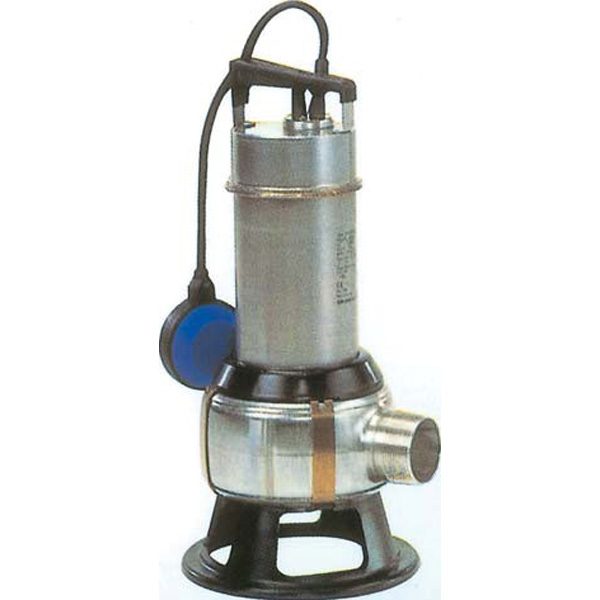

Grundfos AP35B and AP50B

End-of-Life Information Grundfos Unilift AP35B and AP50B wastewater pumps must be disposed of according to local regulations by using a public or private waste collection service. If this is not possible, contact the nearest Grundfos company or service workshop. Safety Risk Safety related to materials used There is no risk for people during the disassembly.

Description

Safety Risk

  • Safety related to materials used There is no risk for people during the disassembly process posed by the materials used for the product.
  • Safety related for handling the product The oil chamber of the pump contains 60 ml non-toxic oil (Shell Ondina 15).

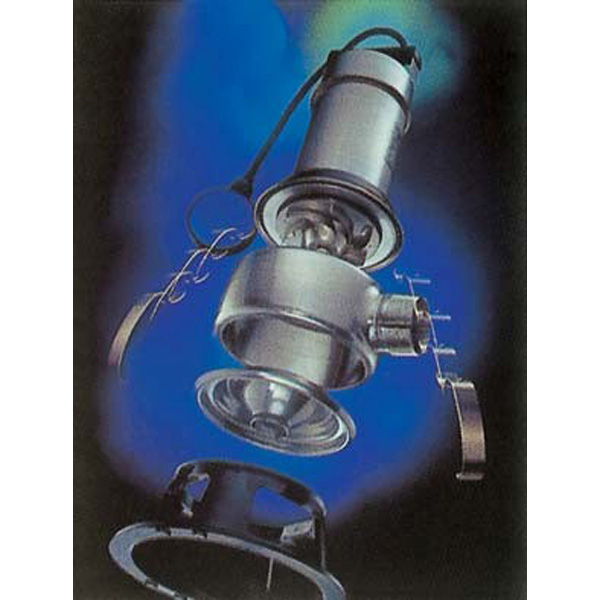

Disassembly of the Product The main materials of the components are:

  • Stainless steel
  • Copper
  • Aluminium
  • Rubber material (NBR)

and can therefore be recycled to a large extend – depending on the national possibilities for recycling. The motor unit cannot be disassembled with standard tools as the motor unit is welded. A saw might be of help here. There are no loose parts inside the motor.

DesignationNameMaterialSpecial Disassembly Consideration
1Motor unitStainless steel, Copper and Aluminium
2ImpellerStainless steel
3Pump housingStainless steel
4UpperStainless steel
5Pump inletStainless steel
6BaseStainless steel
Additional materials:Screws, gaskets, cable etc.: Various materials less than 5% of weight

Download PDF

AP35B_AP50B-1

×
